WILLEX POWER Dzw-51n Nut Crimping Machine
  • WILLEX POWER Dzw-51n Nut Crimping Machine
  • WILLEX POWER Dzw-51n Nut Crimping Machine
  • WILLEX POWER Dzw-51n Nut Crimping Machine
  • WILLEX POWER Dzw-51n Nut Crimping Machine

WILLEX POWER Dzw-51n Nut Crimping Machine

Precise, efficient, and stable.

Nut crimper is widely used for crimping integrated fittings, sleeves, and lock nuts on hydraulic hoses.

It can be used for a wide range of applications, including fittings, hoses, pipes, pins, connectors, sensors, and air springs.




Video



Product Description

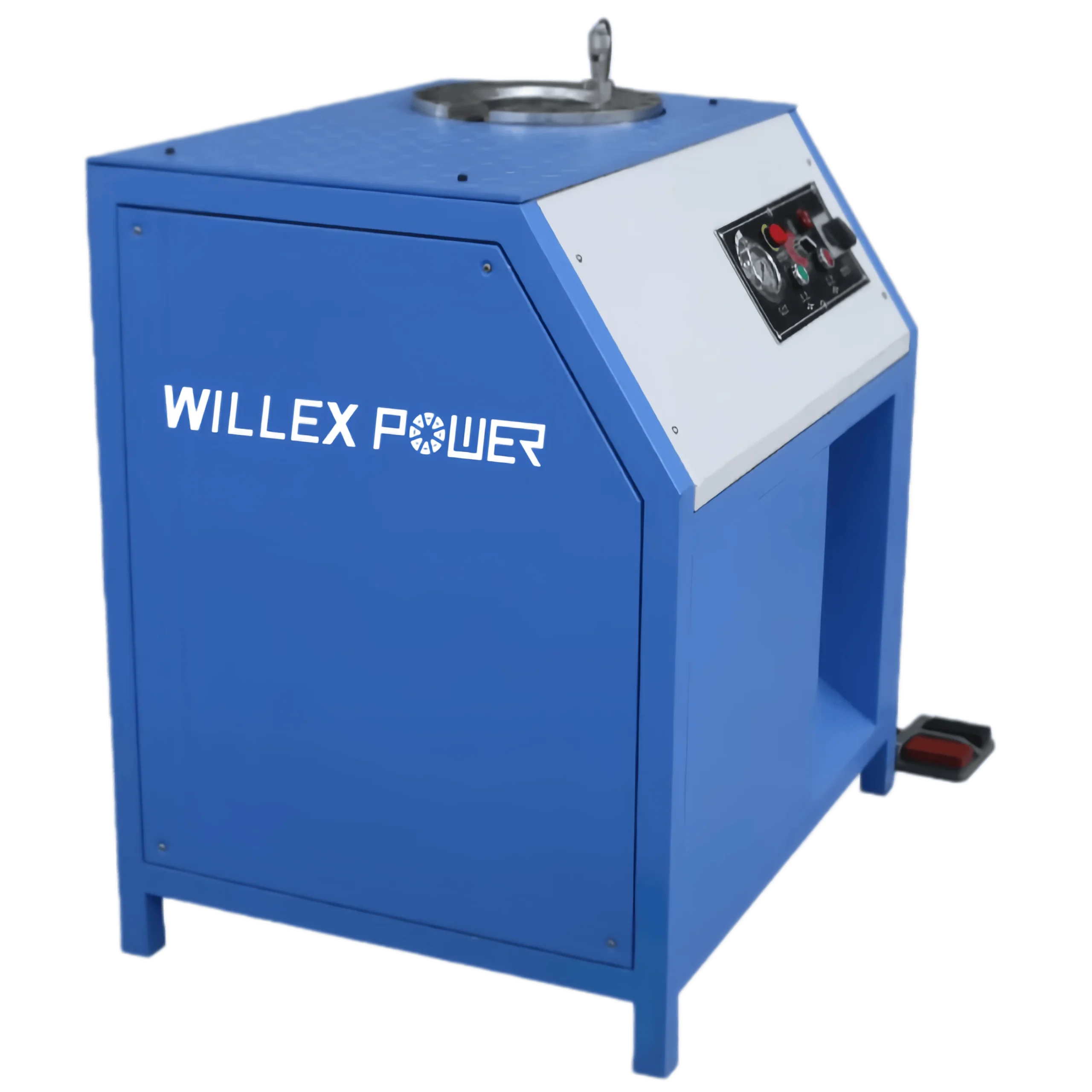

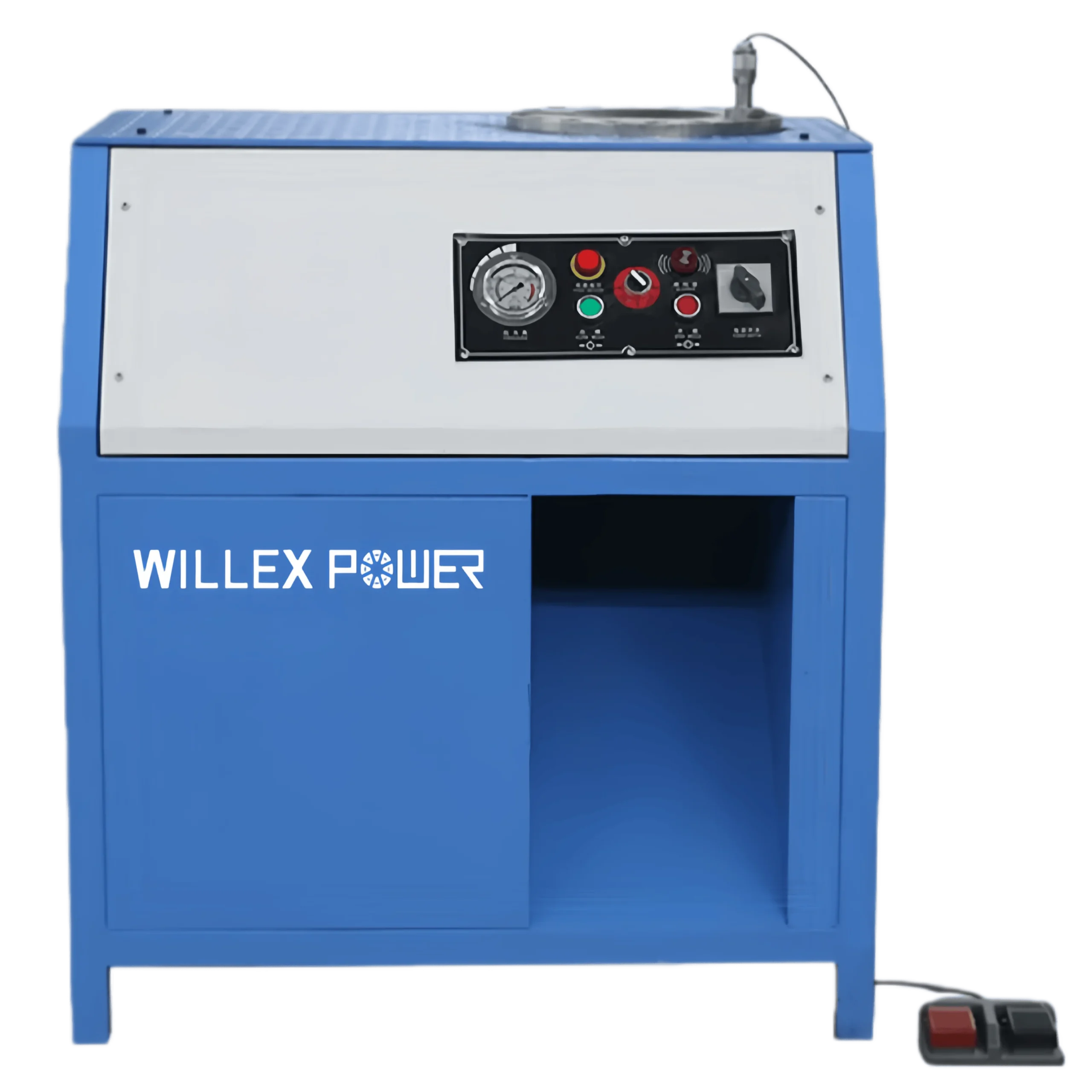

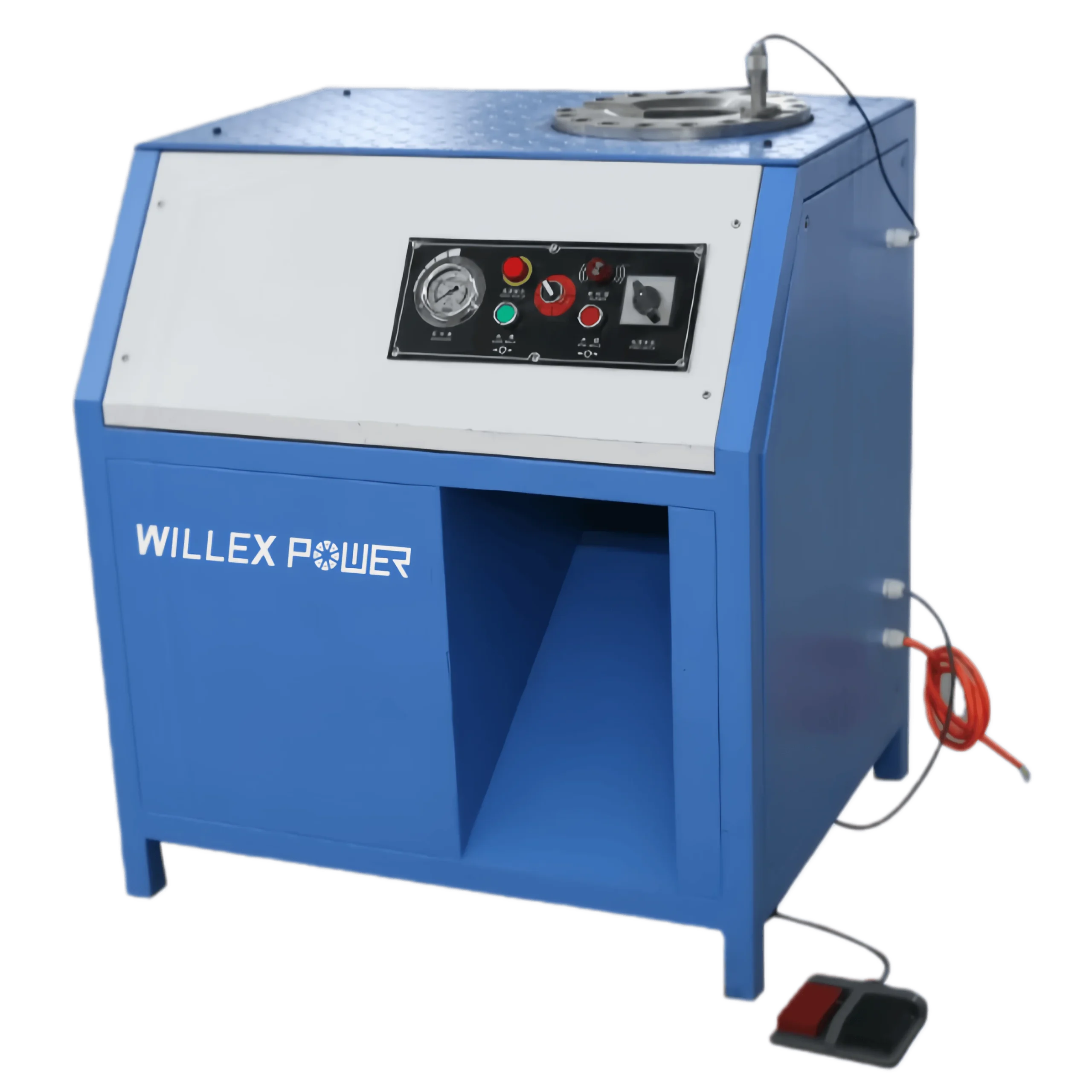

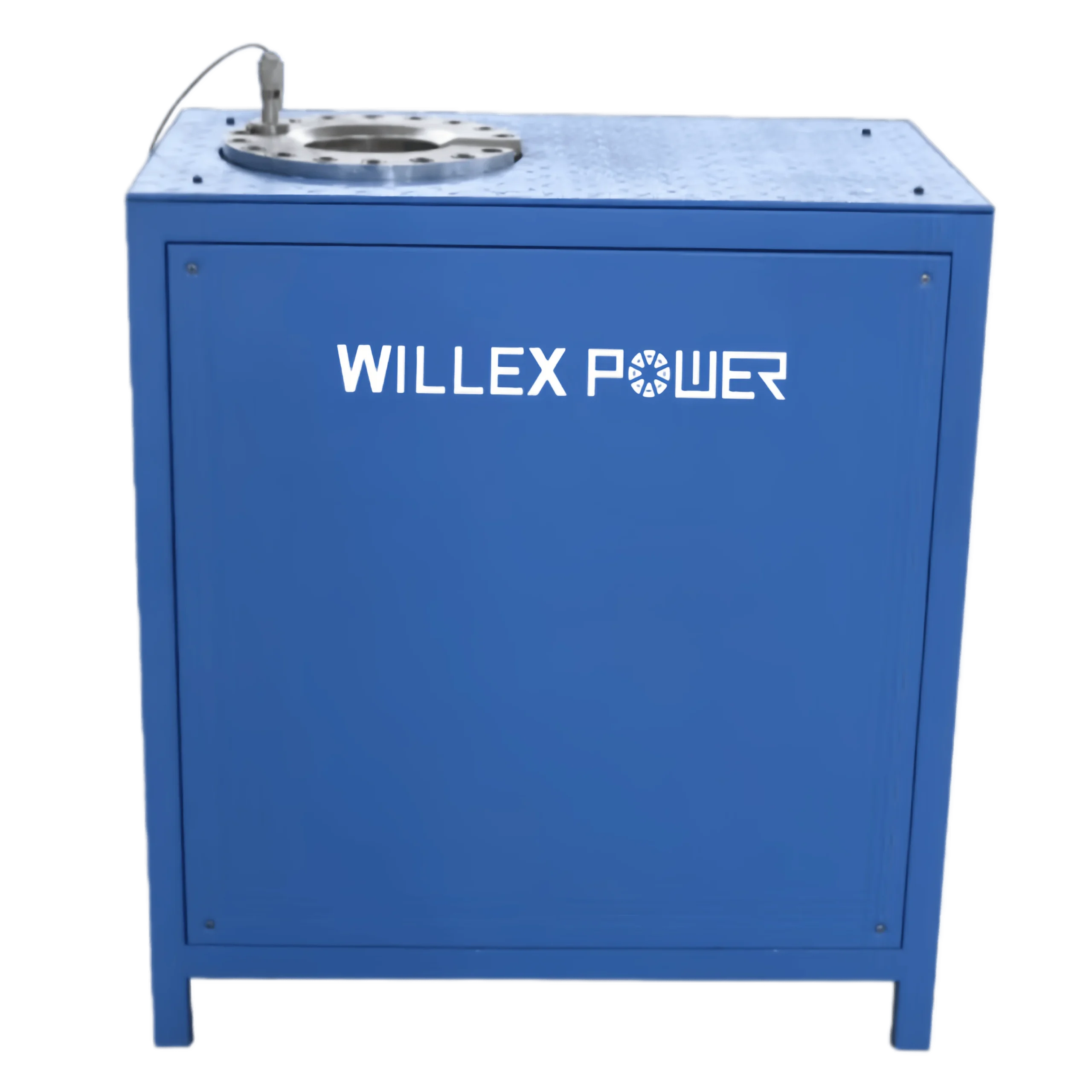

The WILLEX POWER DZW-51N nut crimping machine is a precise, efficient, and stable device. Here's a brief introduction:

Features: This crimping machine boasts precise crimping capabilities, ensuring each crimping job meets high quality standards. Accurate crimping positions and uniform force ensure a tight, conforming connection between connected components. It also boasts high efficiency, enabling rapid crimping of nuts and other components, effectively reducing work time and improving overall workflow. It also offers stable and reliable operation, boasting a superior structural design and performance, ensuring stable operation even during extended periods of continuous operation, minimizing the risk of malfunctions.

Applications: It has a wide range of applications and is commonly used for crimping integrated fittings, sleeves, and lock nuts on hydraulic hoses. This ensures a secure connection between hydraulic hoses and various related accessories, ensuring the proper operation of hydraulic systems. It can also be used for crimping a variety of components, including fittings, hoses, pipes, pins, connectors, sensors, and air springs. It can meet the crimping needs of pipe fittings and connectors across a wide range of industrial applications.

Specifications



TECHNICAL DATA
Max crimping dia(mm) 1)12-49
Max crimping dia
with master dies (inch)		0.47-1.93
Max crimping force (KN)500
Max crimping force (tonnage)50
Closing speed of master dies mm/s  2) 3)1.5
Hydraulic hose size(inch)1 1/4''
Industrial hose size (inch)2''
Die set series51N
Max opening (mm) 4)+45
Max opening without dies (mm)125
Master die D/L(mm)99/22
Master die D/L (inch)3.90/3.15
Motor Power (KW/HP) 3)4.0/5.5
Oil tank volume10L
DIMENSIONS(LxWxH)
Machine(mm)960*750*1020
Machine (inch)37.8*29.5*40.2
Packaged(mm)990*800*1050
Packaged (inch)39*31.5*41.3
WEIGHT
Machine (kg/lbs)285/628.3
Packaged (kg/lbs)300/661.4
1) With standard dies. Crimping range can be increased with special dies.
2) Theoretical with 10 mm cycle.
3) 3-phase/1-phase
4) Maximum opening is the total die travel. Add this value to the minimum crimping
diameter of the die set used. The result is the maximum opening of the machine
with die set in place.
