DZW-P32Q Hydraulic Hose Crimping Machine, Large Diameter Hose Crimper Factory From China

Our factory provides the DZW-P32Q Hose Crimping Machine, capable of handling 1/4 inch to 2 inch high-pressure hydraulic hoses. It comes with semi-automatic opening control, powerful 2000 KN crimping force and an integrated vertical die rack holding 13 sets of dies, greatly boosting daily production efficiency up to 200 pieces per hour.



The DZW-P32Q is a professional hydraulic hose crimping solution specifically engineered for powerful crimp strength, long service life and high industrial productivity. Designed to fit all types of hydraulic hoses up to 2 inches, this integrated machine adopts premium hydraulic components to maintain smooth stable.

By combining a thick forged one-piece crimp head with an independent safety control panel, the DZW-P32Q provides formidable crimping force and steady performance. It comes with a built-in vertical die rack for convenient mold storage and replacement, perfectly suiting both repair workshops and mass production lines, and consistently produces uniform, leak-free high-pressure hose joints.

Detailed Parameters

Max Crimping Dia87 mm/3.42"Max Crimping Force2000 KN/ 200 Tons
Master Die Max Dia99 mm/3.90"Max. opening+33 mm
Hose Size2 inchesMax. opening without dies +132 mm
Oil Tank Volume43 LMotor Power4 KW / 5.5 HP
Machine Weight286kg / 631 lbsMachine Dimensions

840*600*1400 mm (33.1*23.6*55.1 inch)

Mold Parameters

     *: Non standard die


Main component

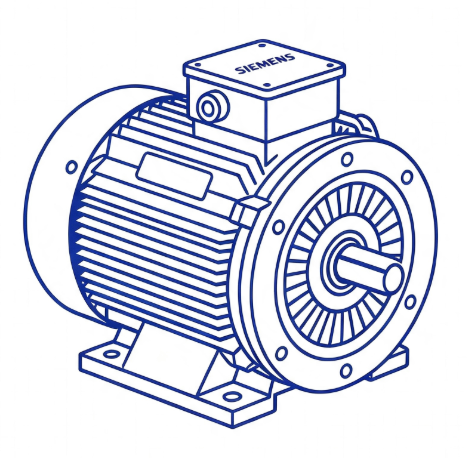

upload/attachment/image/202607/28/17852301105a1772f1daf1752f40c29586b27dc23e_local.png

German Siemens Motors and Semi-Auto Opening Control

Stable powerful power, low noise. Semi-auto opening design simplifies operation, suitable for heavy-duty crimping of large-size hydraulic hoses.

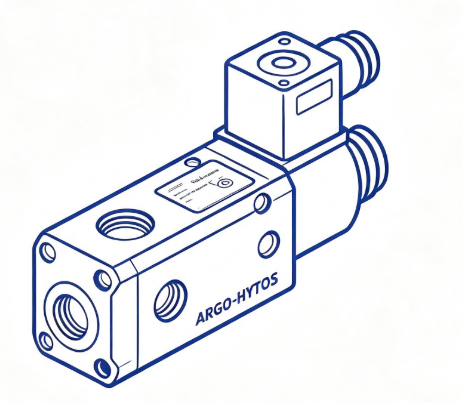

upload/attachment/image/202607/28/17852301479aa925d99f0dec0a8eca25383d09cb75_local.png

German Argo-Hytos Solenoid Valve

Accurate hydraulic flow & pressure control. Double safety protection with stop and emergency stop function, stable under long-hour high pressure.

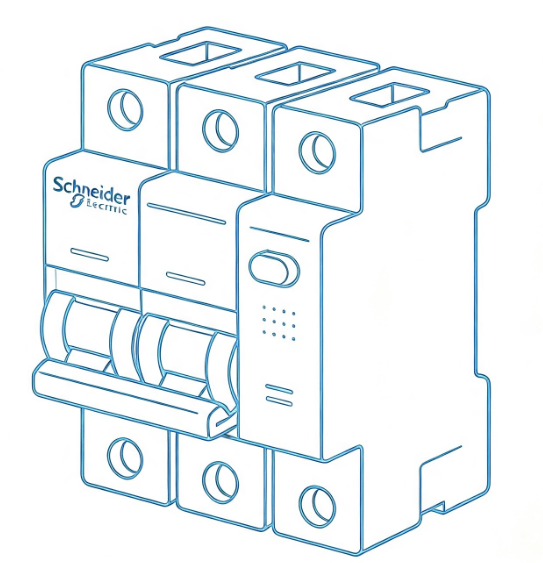

upload/attachment/image/202607/28/1785230222b0a620fb741e87335a797a169eba79f2_local.png

France Schneider Electric Components

Anti-interference & durable electric parts. Support customized motor configuration to meet varied production needs.

upload/attachment/image/202607/28/178523026598d0f51c6efc8e266ff179c48bee8f2c_local.png

Taiwan DingZing Seals

Excellent oil resistance and wear resistance. Effectively prevent hydraulic oil leakage and keep stable system pressure.

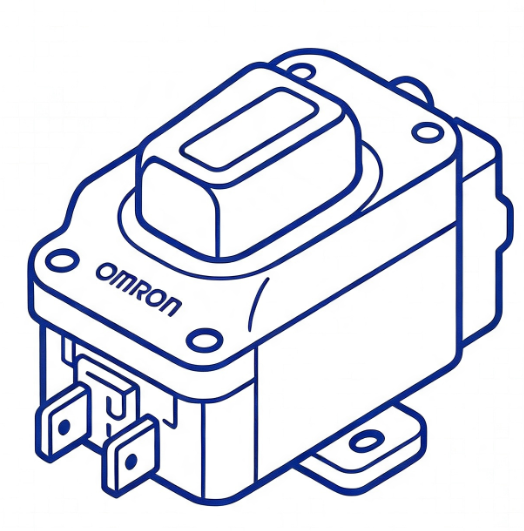

upload/attachment/image/202607/28/17852303145740711272a47e4ea05a2f12455a92b0_local.png

Japan Omron Switches

Sensitive and long-service-life switches. Stable signal feedback to realize precise hydraulic control.

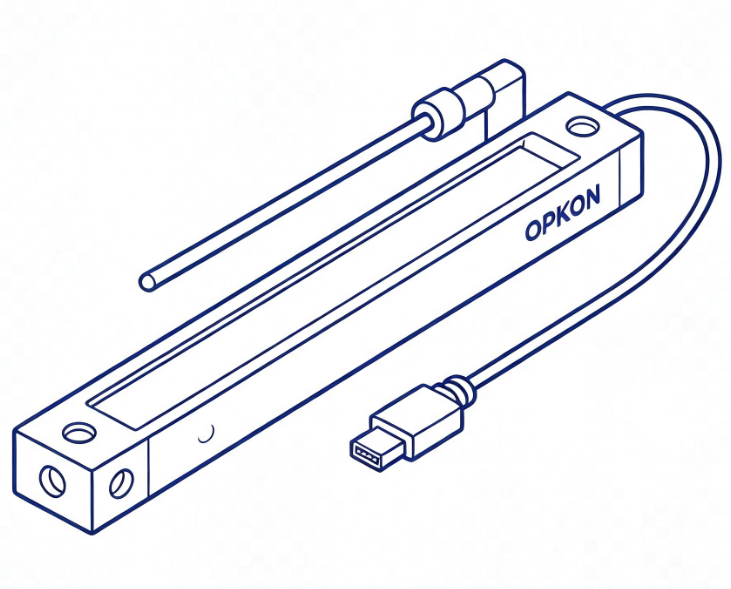

upload/attachment/image/202607/28/17852303566b46cad456b7540db6e0e421effee171_local.png

Turkey OPKON Sensors

Precisely detect mould crimping stroke. Guarantee consistent crimping dimension for hydraulic hoses, ensure stable processing quality.

Product Gallery

Key Advantages

 Die Set Management

Comprehensive P32 series die sets available, ranging from 6.0mm to 84.0mm.

 Pressure Calibration

Achieves precise pressure & flow control, adapting to different hose materials.

 Maintenance Alerts

Schneider electronic systems help predict maintenance needs, reducing unexpected downtime.

  Forged Integrated Die Head

Adopts brand-new one-piece forged die head, with higher structural strength and better wear resistance than conventional cast heads.

 Safety Opening Control

Semi-automatic opening control system. The opening button comes with stop function, matched with power-off emergency stop button for double safety protection.

 Power Flexibility

Customizable 4KW drive motor, optional Siemens motor. Multiple voltage options (110/220/24/380/415/440V), supports single-phase & three-phase power supply.

Investment Return Comparison

Comparison FeatureStandard MachinesP32Q Professional Series
Control ReliabilityBasic ManualSemi-automatic opening control + safety emergency stop system
Head DurabilityCast Iron HeadForged One-Piece Die Head
Pressure PrecisionManual ValveGerman Argo-Hytos Solenoid Valve
Operation ModesSingle ModeSemi-automatic control mode
Maintenance CostHigh (Frequent Wear)Low (Long-life Components)

Frequently Asked Questions

Q: Why choose DZW-P32Q over basic manual crimping machines?

Semi-auto opening system & dual safety protection. Stable crimping quality, output up to 200pcs/h, while manual machines rely heavily on operator experience.

Q: Can I install quick-change dies on the DZW-P32Q to speed up production?

Yes, quick-change tooling supported, greatly saving die replacement time versus old models.

Q: How long is the warranty period of DZW-P32Q compared with competitors?

Most suppliers offer 12-month warranty. Our 3-year full machine warranty reduces long-term operational risks.

Q: Is DZW-P32Q suitable for continuous all-day mass production?

Yes. German Argo-Hytos hydraulic parts enable stable non-stop high-pressure operation for mass production.

Q: How does DZW-P32Q avoid hose leakage issues compared with low-precision crimpers?

Precise pressure control ensures consistent crimp dimension for each fitting and prevents leakage from uneven compression.

Q: What packaging solution does DZW-P32Q adopt, and is it better than ordinary wooden case packing?

Reinforced export packaging, better anti-collision performance during long-distance sea transport than regular wooden boxes.
