Hose Cutting And Skiving Machine DZW-51QG-4-1

Safety protection design

Compact Design

Hand Cutting

Up to 2″ 4SP Hydraulic Hose

CE Approved




Video




Product Description

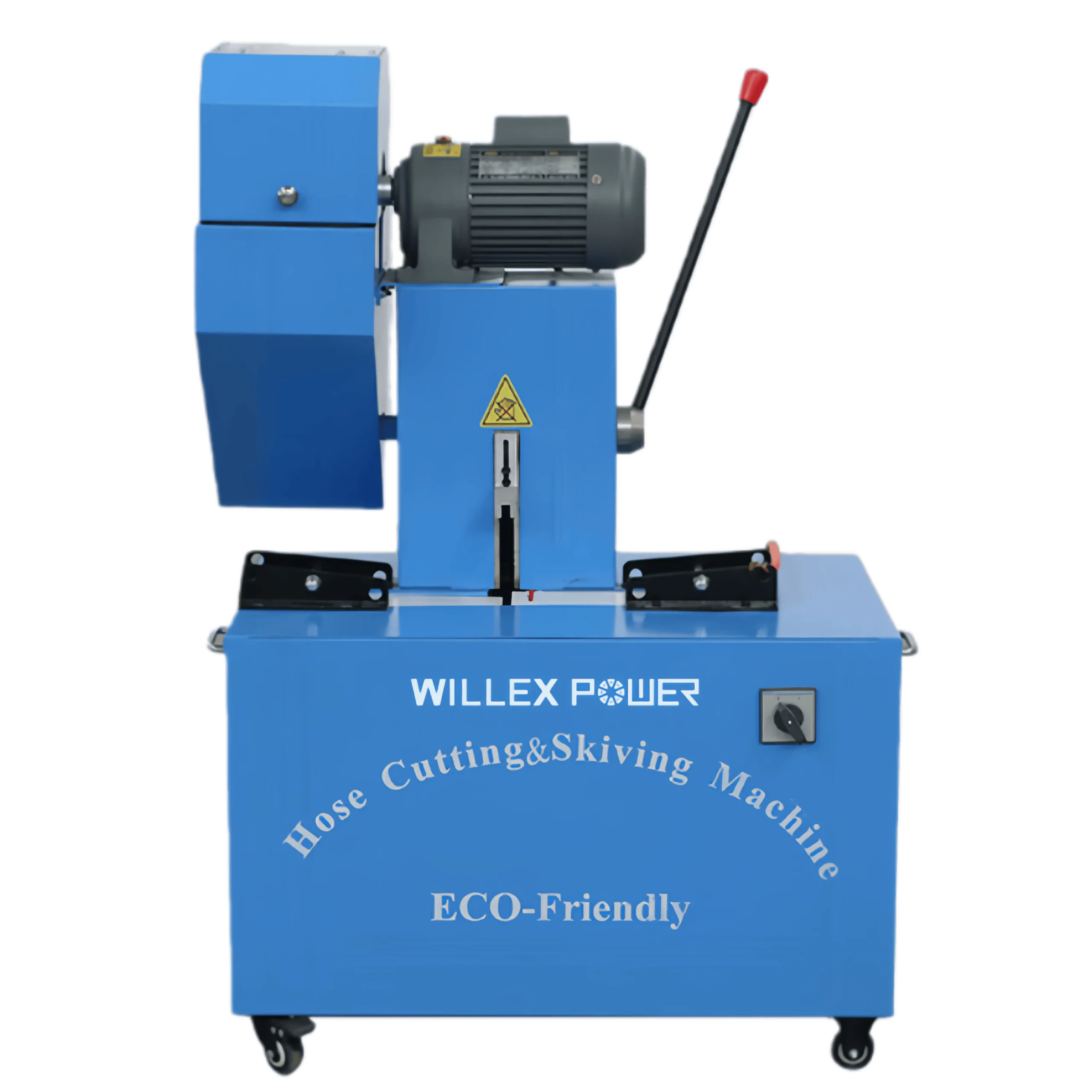

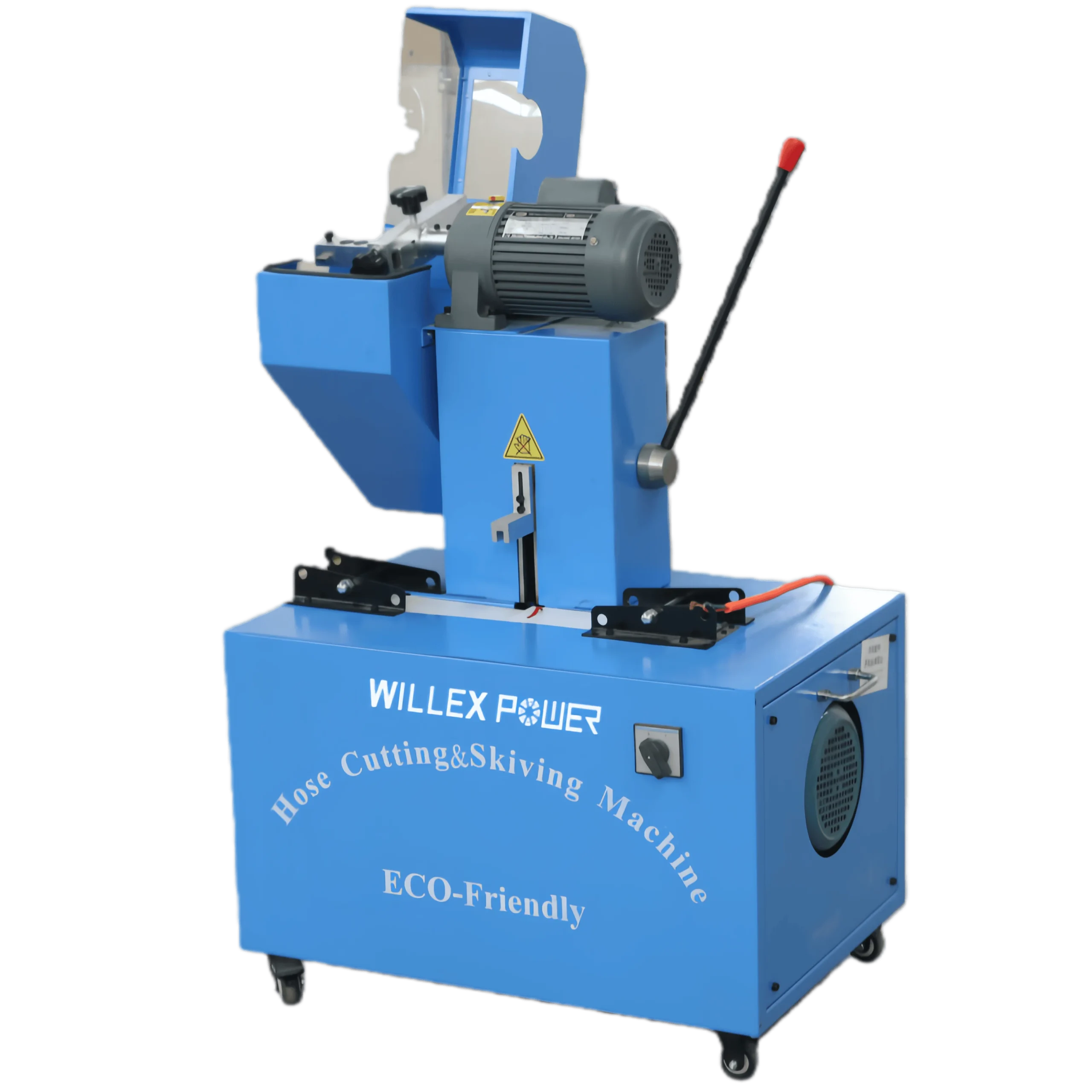

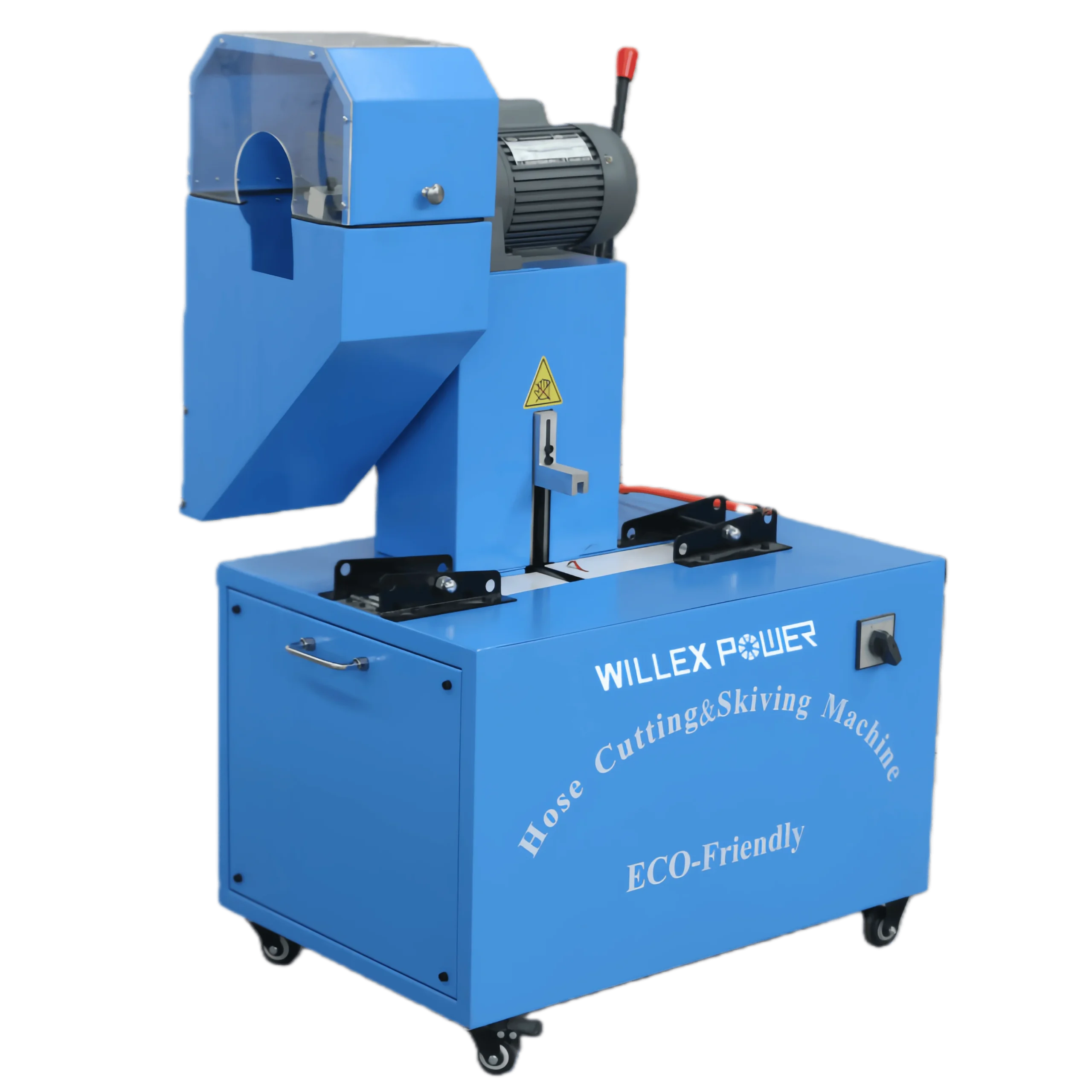

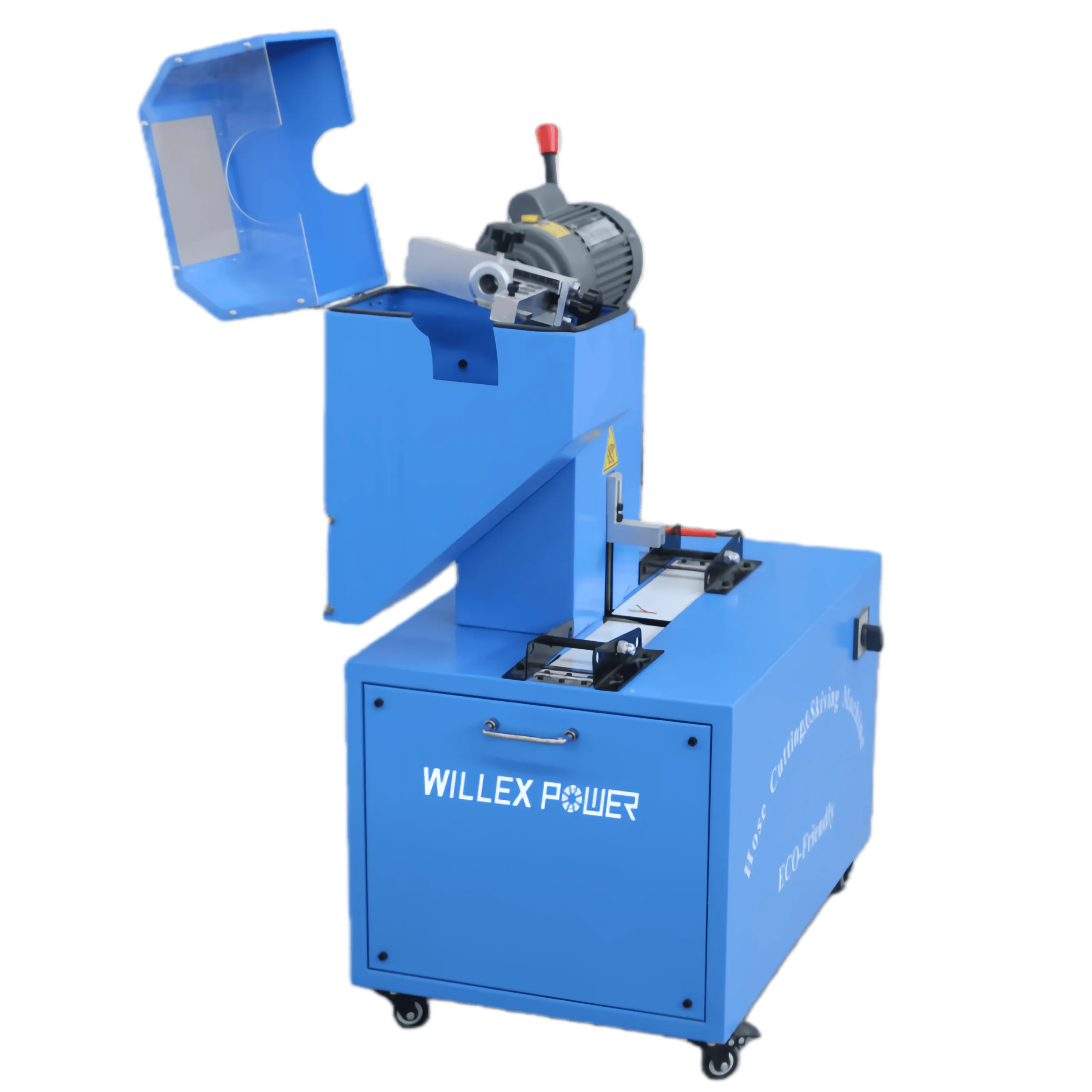

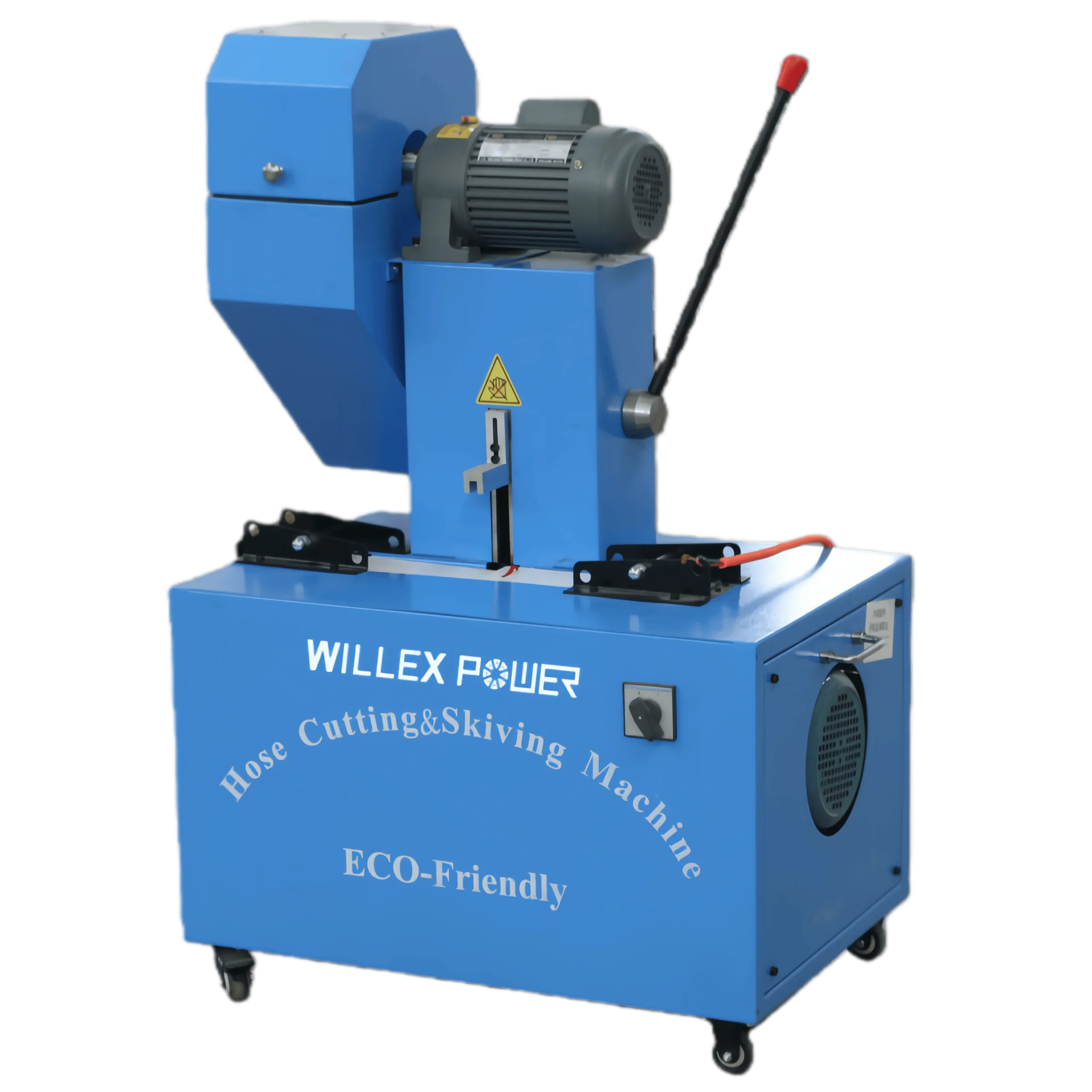

The WILLEX POWER DZW-51QG-4-1 Hydraulic Hose Cutting and Skiving Machine offers the following features:

Integrated Functions: Combining cutting and Skiving functions, it can cut hydraulic hoses and remove the rubber coating from the hose surface, facilitating subsequent hose connection and assembly operations.    This multi-purpose machine improves work efficiency.

Safety Signs: Yellow warning signs on the machine body remind operators to pay attention to safety and avoid potential hazards during operation, such as accidental contact with moving parts.

Power System: Equipped with a motor, it performs the cutting and skiving operations, providing power for the machine.

Easy Mobility: Wheels on the bottom allow for easy movement around the worksite, allowing it to be flexibly placed in different work locations to meet diverse work needs.

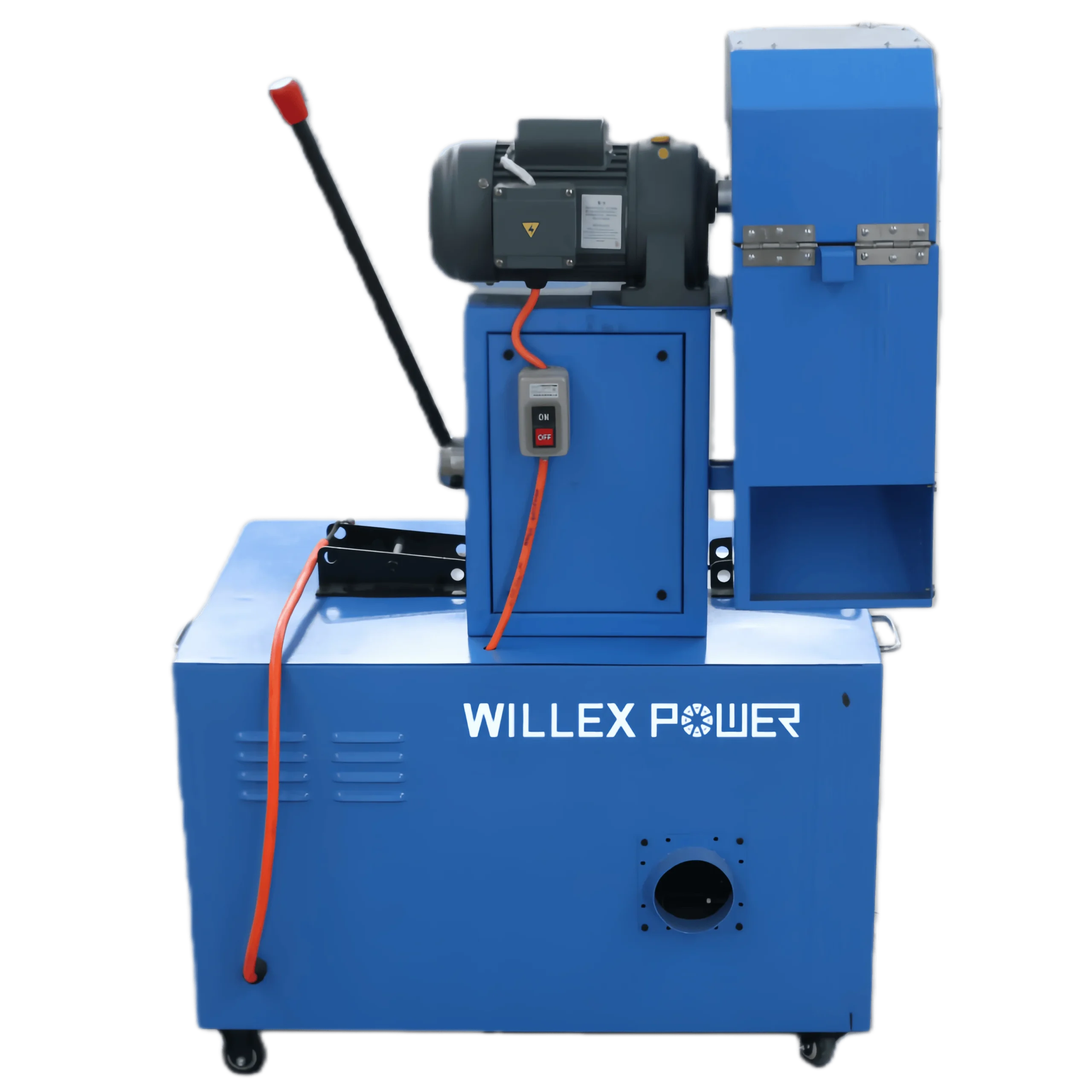

Environmental protection concept: "ECO-Friendly" is marked on the machine body, indicating that environmental protection is emphasized during design or use.    In addition, it is pre-installed with a smoke exhaust port.    If smoke or odor is generated during the cutting operation, it can be connected to an external exhaust device through this port to discharge the exhaust gas in time and keep the working environment fresh.


Specifications



DZW-51QG-4-13)
TECHNICAL DATA
Max. hose size (inch) 1）2''
Diameter (blade)external (mm)350
Diameter (blade) internal (mm)28
Max. hose OD (mm)100
Material of saw webHSS (High-speed steel)
Velocity 50/60Hz2850
Motor Power (KW) 2）3
Motor Power (HP) 2）4
DIMENSIONS(LxWxH)
Machine (mm)780*560*1100
Machine (inch)30.7*22*43.3
Packaged(mm)830*675*1155
Packaged (inch)32.7*26.6*45.5
WEIGHT
Machine (kg)113
Machine (lbs)249
Packaged(kg)133
Packaged (lbs)293
1) Hydraulic hose, 1-2 wire / 4 wire
2) 3-phase / 1-phase
3) Add skiving protective cover
