The Hose Crimping Machine P20 is a professional-grade, high-performance hydraulic assembly solution specifically engineered for precision, durability, and industrial efficiency. Designed to accommodate a diverse range of hydraulic hoses up to 1 1/2 inches, this versatile machine integrates industry-leading components to ensure seamless operation in demanding sectors such as construction machinery and hydraulic equipment manufacturing.
By combining a robust forged one-piece die head with advanced electronic control systems, the P20 delivers exceptional crimping force and unmatched stability. Whether your production line requires the intuitive interface of a touchscreen or the high-precision automation of CNC systems, the P20 is fully adaptable to various production scales, ensuring leak-free, high-pressure connections every single time.
Detailed Parameters
| Max Crimping Dia | 87mm / 3.42" | Max Crimping Force | 1600 KN / 160 Tons |
|---|---|---|---|
| Master Die Max Dia | 109mm / 4.3" | Closing Speed | 2.7 mm/s |
| Hydraulic Hose Size | Up to 1 1/2" | Industrial Hose Size | Up to 2.40" |
| Die Set Series | Series 32 | Motor Power | 3 KW |
| Oil Tank Volume | 27 L | Machine Dimensions | 8156001400 mm |
Key Advantages
Schneider Control System
Equipped with world-renowned Schneider electronic components for high stability, strong anti-interference, and minimal downtime.
Argo-Hytos Precision
German Argo-Hytos solenoid valves provide pinpoint pressure and flow control for reliable high-pressure operation.
Forged Die Head
A new one-piece forged die head offers superior strength and wear resistance compared to traditional cast heads.
Flexible Control
Choose between intuitive Touchscreen, high-precision CNC, or semi-automatic modes to suit your production needs.
Wide Compatibility
Easily handles wire spiral and high-pressure hoses up to 1.5", ideal for heavy-duty industrial applications.
Industrial Durability
Engineered for long-term high-pressure use, effectively preventing deformation and oil leakage over time.

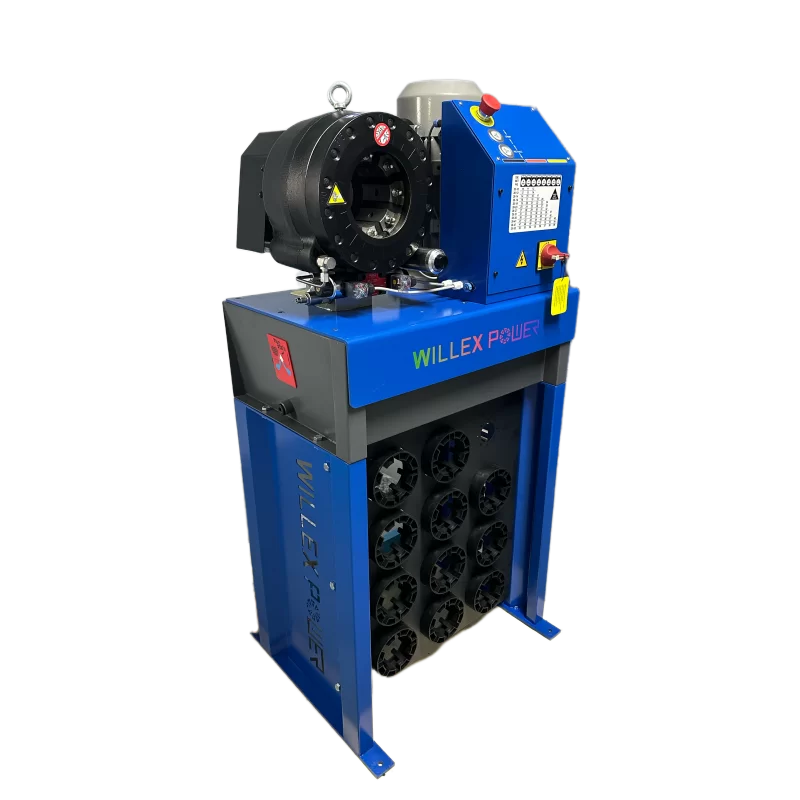

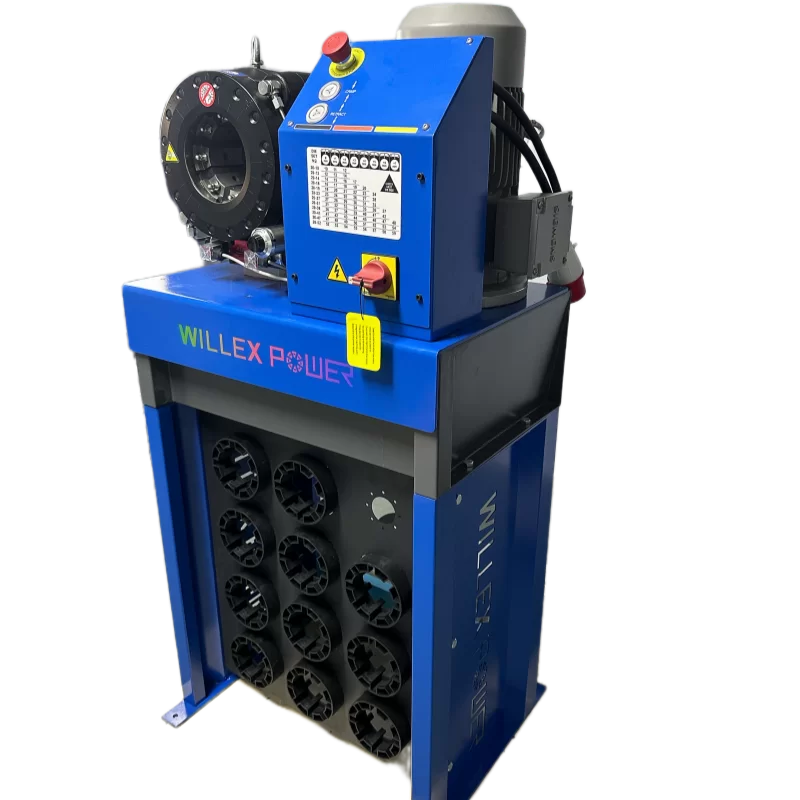

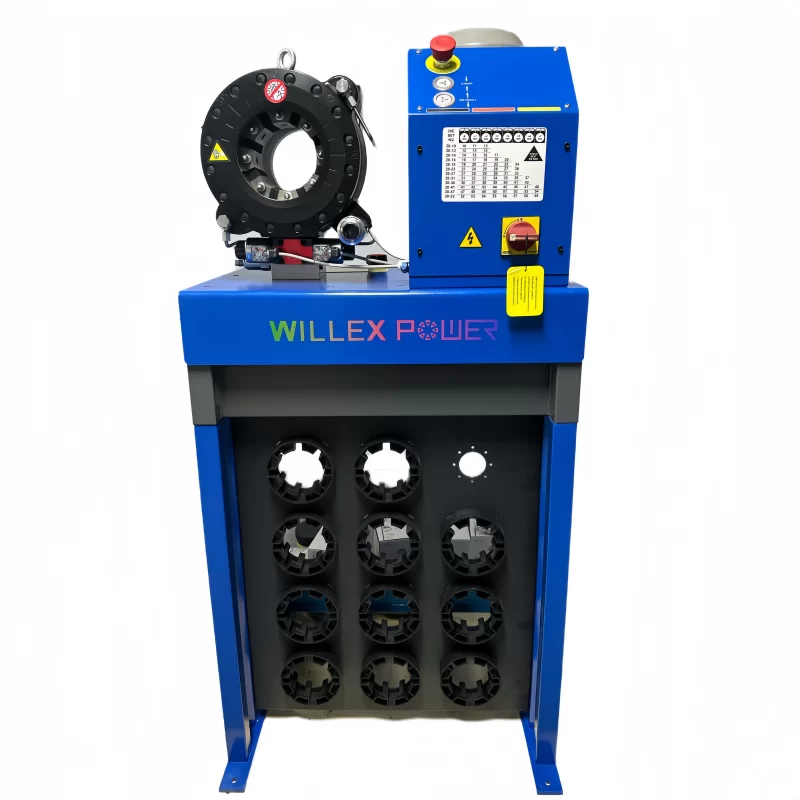

Product Gallery
Management Platforms
Die Set Management
Comprehensive P20 series die sets available, ranging from 6.0mm to 63.0mm for diverse hose specs.
Pressure Calibration
Integrated precision control for adjusting crimping force based on hose material and thickness.
Real-time Monitoring
Touchscreen displays real-time operating parameters to ensure consistency across every crimp.
Programmable CNC
Advanced CNC computer control for automating complex crimping processes and reducing errors.
Maintenance Alerts
Schneider electronic systems help predict maintenance needs, reducing unexpected downtime.
Power Flexibility
Supports both 1-phase and 3-phase power options to adapt to different workshop electrical setups.
Investment Return Comparison
| Comparison Feature | Standard Machines | P20 Professional Series |
|---|---|---|
| Control Reliability | Basic Manual | Schneider Electronic Control |
| Head Durability | Cast Iron Head | Forged One-Piece Die Head |
| Pressure Precision | Manual Valve | German Argo-Hytos Solenoid |
| Operation Modes | Single Mode | Touchscreen / CNC / Semi-Auto |
| Maintenance Cost | High (Frequent Wear) | Low (Long-life Components) |
Frequently Asked Questions
The P20 is capable of crimping hydraulic hoses up to 1 1/2 inches and industrial hoses up to 2.40 inches, depending on the die set used.
Yes, while we provide a standard P20 series die set, a wide range of special die sets is available upon request to meet specific industrial needs.
The forged one-piece head has a more uniform internal structure, offering higher strength and wear resistance, which prevents deformation during long-term high-pressure use.
For high-volume or complex processes, the CNC computer control is recommended as it enables precise program control and higher levels of automation.
Yes, the machine is designed to be flexible and can be configured for either 1-phase or 3-phase electrical systems.
Schneider components provide high precision and stability, which reduces electrical failures and lowers maintenance costs, ensuring continuous production flow.
